Hayward SwimClear Multi-Element 525 Sq Ft Cartridge Pool Filter W3C5030

The Hayward SwimClear multi-element cartridge filter uses a Quad-Cluster of four reusable polyester cartridge elements to deliver 525 square feet of heavy-duty dirt-holding capacity, the largest in the SwimClear line, giving extra-long filter cycles that can run much of a season between cleanings. It captures more dirt for superior water clarity with no supplemental media and no backwashing, while the industry low head loss helps reduce energy costs. A durable glass-reinforced co-polymer tank handles demanding applications, including in-floor cleaning systems, and a heavy-duty tamper-proof one-piece clamp with self-aligning top and bottom makes servicing the elements fast without disturbing piping. A non-corrosive top closure plate keeps elements from lifting so unfiltered water cannot bypass into the pool, and a quick quarter-turn air relief valve bleeds air fast. Full-flow 2-inch internal piping with a union coupling that accepts 2 inch or 2.5 inch pipe maximizes performance, and a full-size 1.5 inch integral drain makes flushing the tank easy.

Features

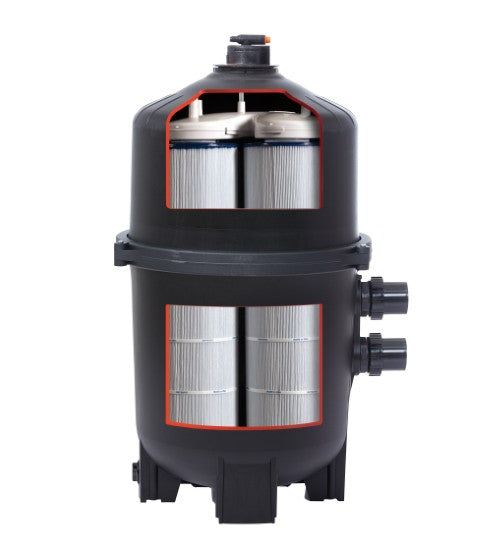

• Quad-Cluster of four reusable polyester cartridge elements for 525 sq ft of capacity
• Largest capacity in the SwimClear line for the longest filter cycles
• Captures more dirt with no supplemental media or backwashing
• Glass-reinforced co-polymer tank handles demanding applications, including in-floor cleaning systems

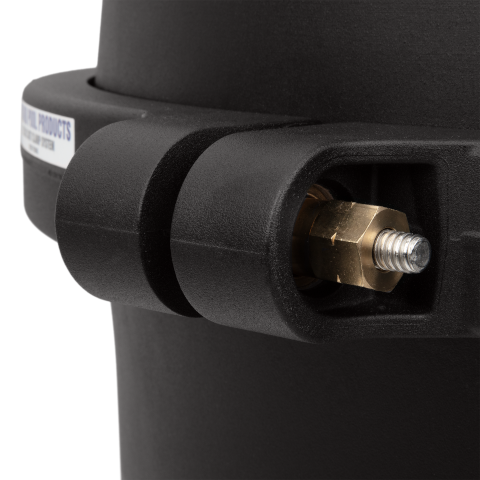

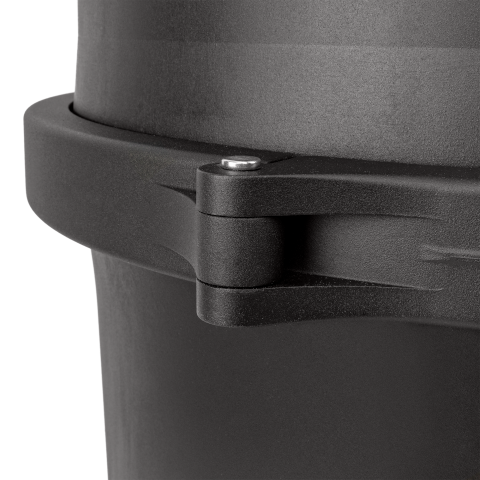

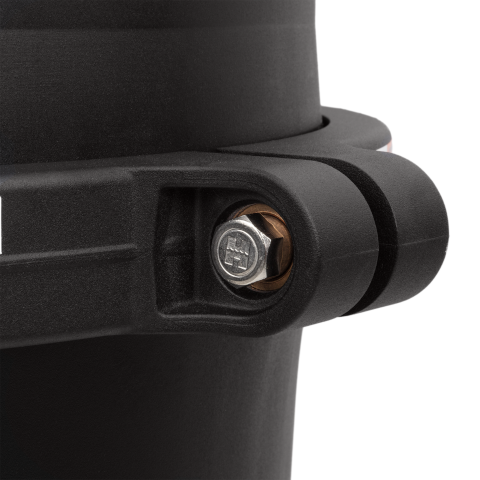

• Heavy-duty tamper-proof one-piece clamp with self-aligning tank top and bottom
• Non-corrosive top closure plate prevents element lift and unfiltered bypass

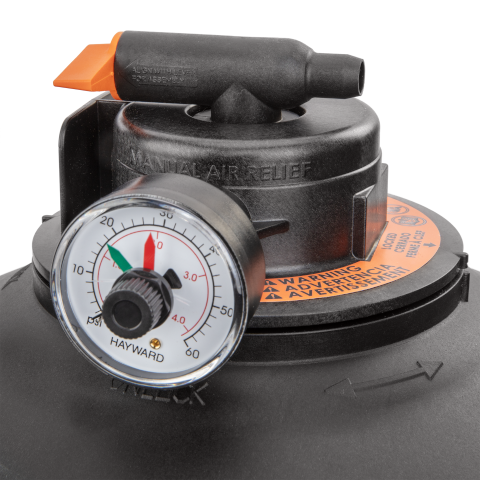

• Rapid-release quarter-turn manual air relief valve

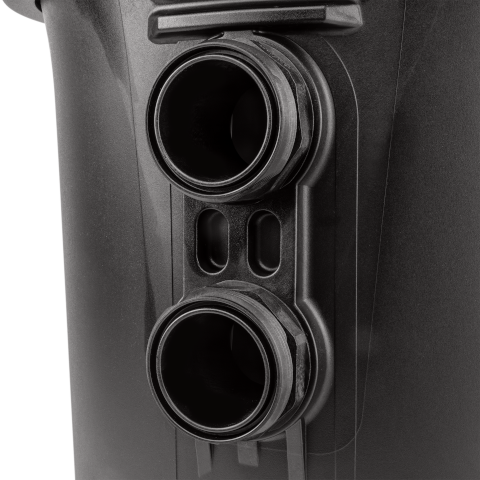

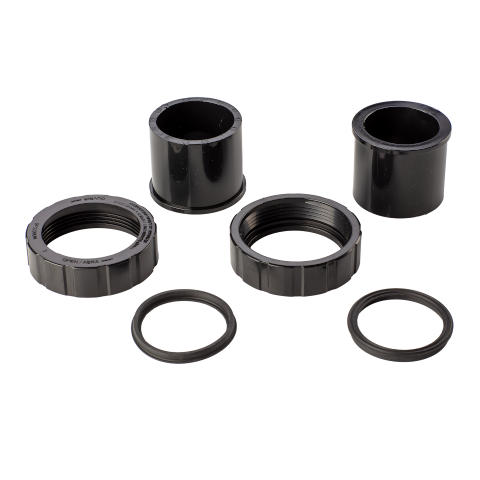

• 2 inch full-flow internal piping, union accepts 2 inch or 2.5 inch pipe
• Full-size 1.5 inch integral drain for quick tank flushing
• Included pressure gauge

Specifications

• Part Number: W3C5030
• Type: Multi-element cartridge pool filter (Quad-Cluster)
• Effective Filtration Area: 525 sq ft
• Number of Elements: 4
• Design Flow Rate: 150 GPM residential, 150 GPM public
• Application: In-ground
• Tank: Glass-reinforced co-polymer (GFR), corrosion free
• Connections: PVC union accepts 2 inch or 2.5 inch pipe, 2 inch full-flow internal piping
• Drain: 1.5 inch integral
• Footprint: 26 in x 26 in
• Side Clearance: 18 in
• Dimensions: 46.5 in H x 24 in x 24 in
• Shipping Weight: 92 lb
• Warranty: 1 year parts
