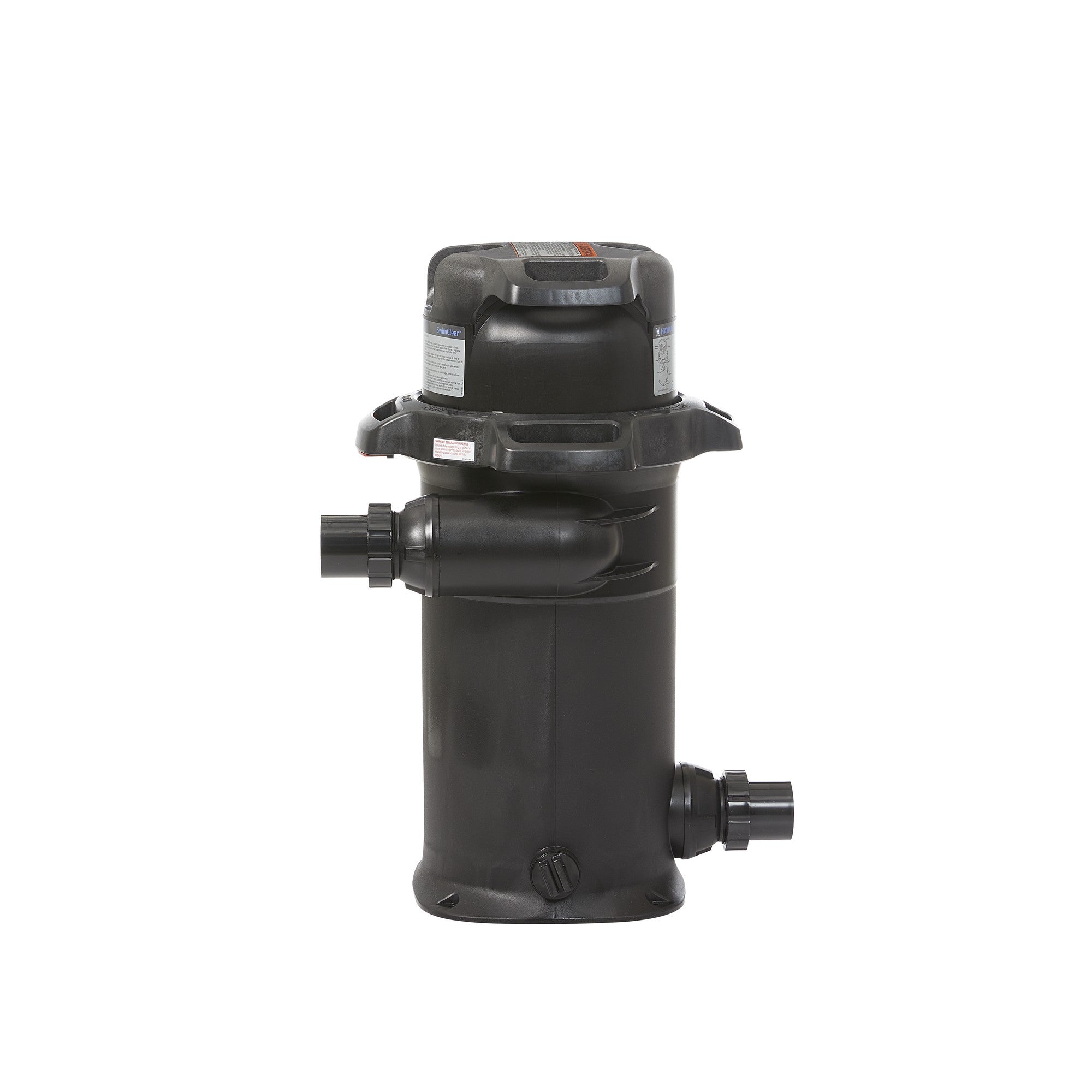

Hayward SwimClear Single Element 150 Sq Ft Cartridge Pool Filter W3C150S

The Hayward SwimClear single-element cartridge filter is one of the most efficient single-element cartridge filters ever built, capturing more dirt for superior water clarity with no supplemental media and no backwashing. Its industry-leading hydraulic efficiency and low head loss let your pump run at a lower speed or for less time, which increases energy savings. Servicing is unusually easy: the Easy-Lok ring design gives quick access to internal components, ergonomic grip handles let you handle the unit without touching fiberglass, and the low body height means less lift to clean or replace the element. A recessed pressure gauge and manual air relief let you set the head assembly upside down on the pad without contaminating the seal, and 2-inch by 2.5-inch union connections make installation and service fast.

Features

• Captures more dirt for superior water clarity with no supplemental media or backwashing
• Industry-leading hydraulic efficiency lets the pump run slower or less, for energy savings
• Easy-Lok ring design for quick access to internal components
• Ergonomic grip handles for easy handling without touching fiberglass

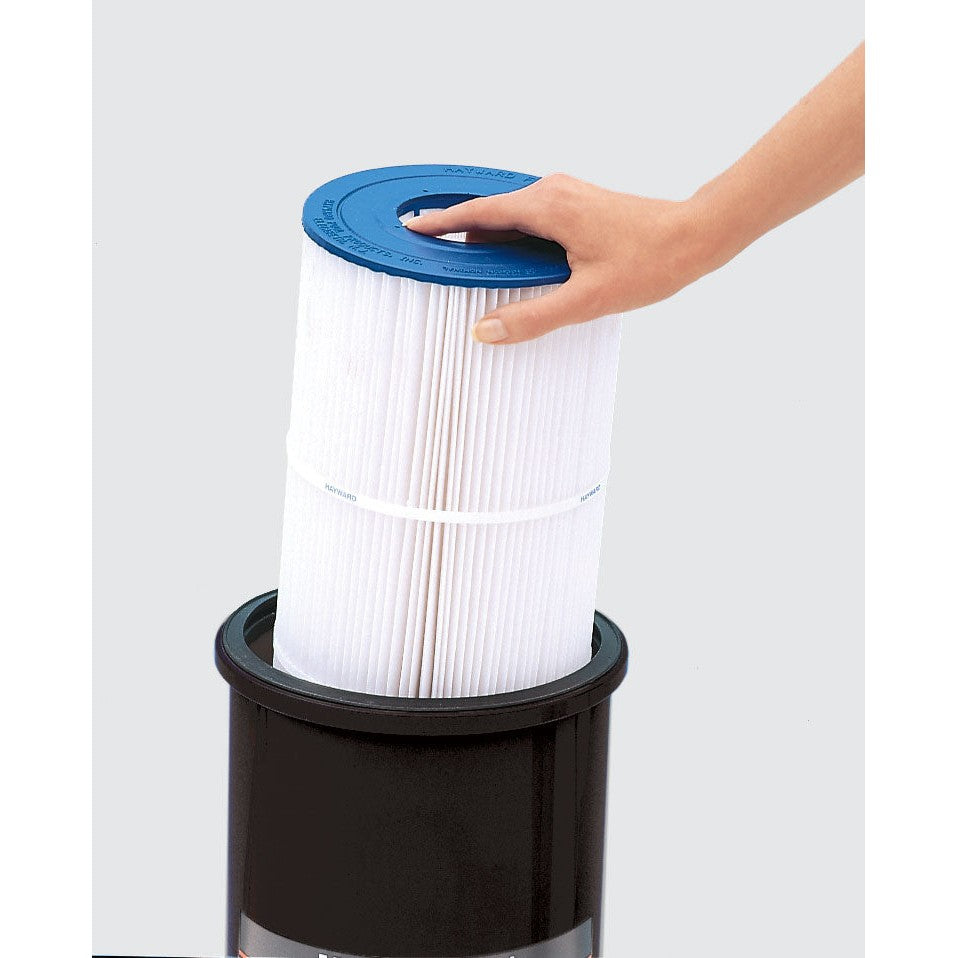

• Low body height for less lift when cleaning or replacing the element

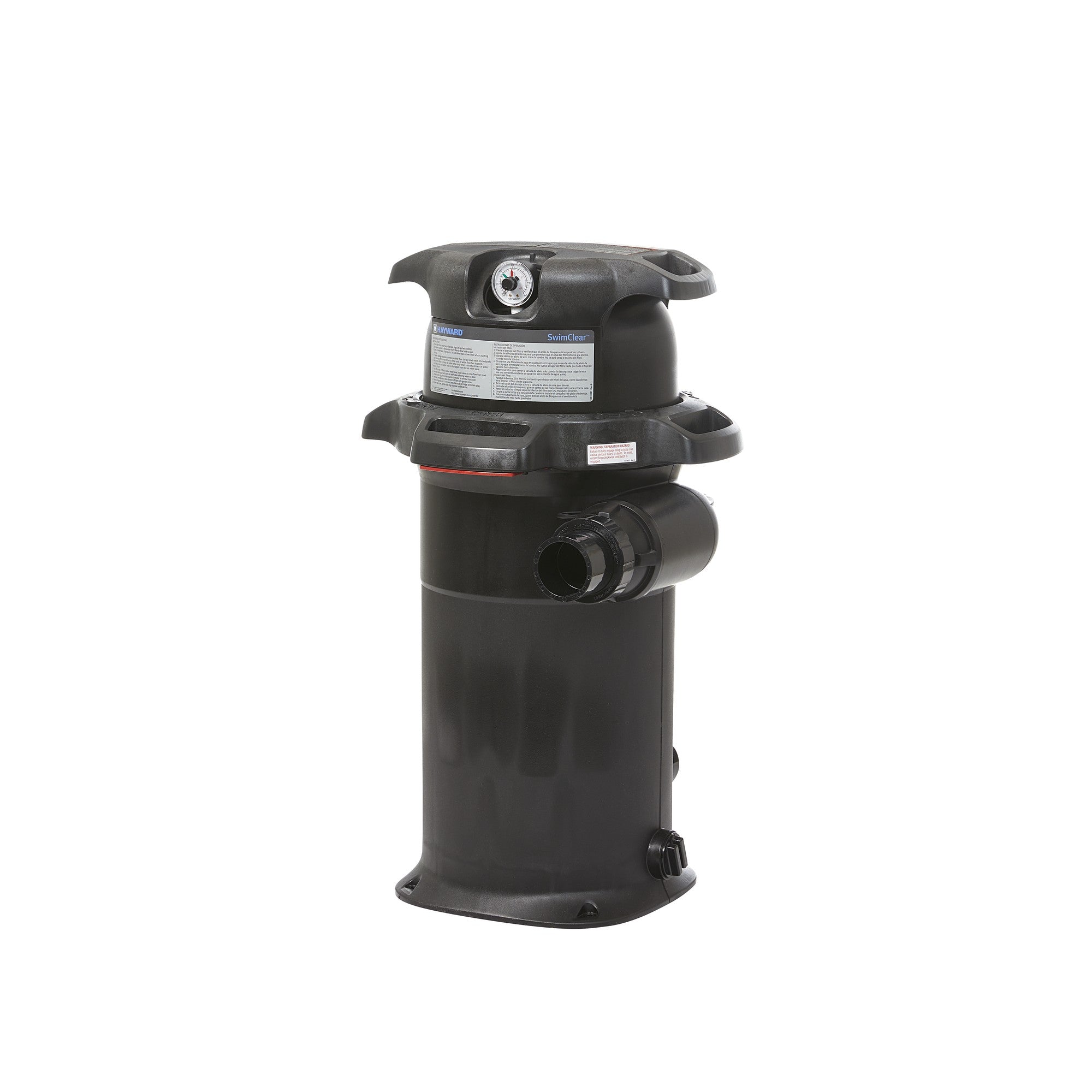

• Recessed pressure gauge and manual air relief protect the seal during service
• 2 inch by 2.5 inch union connections for fast installation and service
• Included pressure gauge

Specifications

• Part Number: W3C150S
• Type: Single-element cartridge pool filter
• Effective Filtration Area: 150 sq ft
• Number of Elements: 1
• Public Design Flow Rate: 56 GPM
• Application: In-ground, new or existing
• Tank: Glass-reinforced (GFR), corrosion free
• Connections: 2 inch by 2.5 inch unions
• Drain: 1.5 inch
• Footprint: 18 in x 18 in
• Side Clearance: 18 in
• Dimensions: 33.25 in H x 18.25 in x 18.25 in
• Shipping Weight: 36.4 lb
• Warranty: 1 year parts
